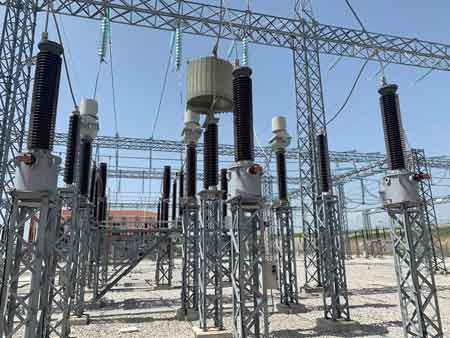

Capacitor Voltage Transformer in Substation
A capacitor voltage transformer steps down extra high voltage (EHV) for metering and protection in substation applications while offering communication capabilities. It plays a dual function in modern power systems by combining voltage scaling and power line carrier signal coupling.
Electrical Transformer Maintenance Training
Substation Maintenance Training
Request a Free Training Quotation
What is a Capacitor Voltage Transformer in Substation
A capacitor voltage transformer (CVT) in substation applications is a high-voltage device that performs multiple essential functions. It is widely used in EHV systems for both measurement and communication. Here's what defines a CVT:
✅ Steps down EHV from transmission lines to a standardized secondary voltage for metering and protective relays.
✅ Functions as a coupling device for power line carrier (PLC) systems, allowing high-frequency communication signals to travel over the same conductors as power.
✅ Uses a capacitor voltage (V) divider with capacitor C1 and other capacitor elements, making it cost-effective and compact compared to electromagnetic voltage transformers.
Capacitor Voltage Transformer in Substation
A capacitor voltage transformer in substation settings is critical in power systems. It steps down EHV from transmission lines to a secondary voltage suitable for measuring instruments and metering protective equipment. Additionally, it performs a dual function by enabling communication across the grid through power line carrier signals. Understanding how this device operates and where it excels is vital for substation engineers, utility planners, and maintenance professionals. To understand how CVTs integrate into the overall grid infrastructure, see our article on: What is an electrical substation?
Its ability to couple high-frequency signals sets it apart, making it a key component in power line carrier communication systems. This dual function eliminates the need for additional coupling capacitors, optimizes space, and reduces costs in substation layouts. To explore other key devices in a substation, including transformers and breakers, refer to our page on electrical substation components.
Working Principle and Construction
The CVT uses a capacitor voltage divider formed by stacked capacitor elements, typically capacitor C1 and additional units, connected in series across the HV line. The divided V is passed through a tuning reactor to adjust for phase alignment and resonance at the desired frequency. An electromagnetic unit, or intermediate transformer, transforms this adjusted signal to a lower, measurable V, delivered via the secondary winding.
A circuit diagram often depicts this process, illustrating the capacitive divider, reactor, transformer, and output connections. The absence of a large magnetic core allows CVTs to maintain a compact design, which is especially beneficial in EHV installations. For a deeper understanding of transformer technologies in substation environments, visit our guide on the electrical substation transformer.
Applications in High Voltage Substations
The capacitive voltage transformer is most commonly used in EHV substations where cost, footprint, and functionality are critical. Because of its compact size and built-in ability to couple high-frequency signals, the CVT excels in applications such as:
-
Voltage measurement for measuring instruments
-
Operation of metering protective relays
-
Integration into power line carrier communication networks
-
Control systems requiring reliable V data
In regions adhering to North American standards, CVTs are typically aligned with IEEE and CSA V ratings and insulation classes. To explore how CVTs and other automation technologies are modernizing substations, see our article on substation automation.
Comparison with Electromagnetic Voltage Transformers
While CVTs and electromagnetic voltage transformers serve V transformation roles, each has distinct advantages. CVTs are more economical for HV applications due to their lightweight construction and multi-role functionality. On the other hand, electromagnetic units tend to provide better transient response and higher accuracy in rapidly changing conditions. To learn how other equipment, like circuit breakers, fits into V control and protection, view our article on the circuit breaker in a substation.
The capacitor voltage transformer is the preferred solution where space, budget, and communication integration are priorities. Where ultra-precise measurement or fast transient detection is necessary, traditional EMVTs may still be favored.
Maintenance, Testing, and Operational Considerations
Maintaining a CVT involves regular inspection of insulation performance, especially across capacitor elements and the secondary winding. Key tests include:
-
Dielectric loss factor (tan delta) testing
-
Insulation resistance checks
-
Physical inspections for oil leaks, corrosion, or damage
-
Verification of output V against expected values
Failures often stem from moisture ingress, insulation aging, or tuning reactor detuning. Although many modern units are designed for long intervals between services, substations relying on CVTs for measuring instruments or power line carrier systems cannot afford unexpected outages. For best practices in field testing and inspection, check our methodology for electrical substation maintenance.
Advanced monitoring systems are beginning to incorporate digital diagnostics, allowing for real-time predictive maintenance and fault detection. This represents one of the most promising innovations in CVT technology. To further expand your understanding, explore our training programs on substation training and substation maintenance training.
Frequently Asked Questions
What is the primary function of a capacitor voltage transformer?
The main function is to step down EHV from transmission lines to a lower secondary V used for metering, protective devices, and to enable communication via power line carrier signals.
How does a CVT differ from an electromagnetic voltage transformer?
A CVT uses a capacitor voltage divider and electromagnetic unit, making it compact and cost-efficient for EHV applications. EMVTs rely solely on magnetic cores and offer better accuracy for fast transients.
What are the key maintenance practices for CVTs in substations?
Essential practices include dielectric testing, inspection of capacitor C1 and other components, and functional verification of the secondary winding output to ensure reliable operation.
