AC Transformer - Static Electrical Device

An AC transformer, short for alternating current transformer, is a static electrical device designed to transfer electrical energy between two or more circuits through electromagnetic induction. This ingenious process leverages the fluctuating nature of alternating current (AC) to induce a voltage in a secondary circuit, effectively changing the voltage level without altering the frequency.

There's no such thing as a DC transformer. This is because direct current (DC), which flows in one direction, cannot create the changing magnetic field necessary for electromagnetic induction.

What is an AC Transformer and How Does It Differ from a DC Transformer?

It is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. It is specifically designed to work with alternating current (AC). The primary function is to increase (step-up) or decrease (step-down) voltage levels to suit different power requirements. In contrast, a DC transformer does not exist in the traditional sense because direct current (DC) does not change direction and therefore cannot induce a voltage in a secondary coil through a magnetic field. Instead, DC-DC converters are used to achieve similar voltage adjustments in DC systems.

What are the Main Components?

The key components include:

• Core: Typically made of laminated silicon steel, the core provides a path for the magnetic flux.
• Primary Winding: The coil connected to the input power supply. When AC voltage is applied, it creates a magnetic field.
• Secondary Winding: The coil connected to the output, where the induced voltage is delivered to the load.
• Insulation: Materials that insulate the windings and core to prevent short circuits and electrical faults.

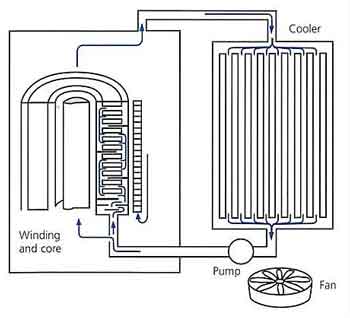

• Cooling Mechanism: Systems like oil or air cooling to dissipate heat generated during operation.

How Does an AC Transformer Work?

It operates on the principle of electromagnetic induction. When an AC voltage is applied to the primary winding, it generates a time-varying magnetic field around the core. This changing magnetic field induces a voltage in the secondary winding. The magnitude of the induced voltage depends on the ratio of the number of turns in the primary winding to the number of turns in the secondary winding. This allows the device to step up or step down voltage levels as needed. For example, if the secondary winding has more turns than the primary winding, the voltage is increased, and vice versa.

The Inner Workings

When an AC voltage is applied to the primary winding, it creates a fluctuating magnetic field in the core. This changing magnetic field induces a voltage in the secondary winding, as per Faraday's Law of electromagnetic induction. The ratio of the number of turns in the primary and secondary windings determines the voltage transformation ratio.

For instance, if the secondary winding has twice the number of turns as the primary winding, the output voltage will be double the input voltage (a step-up device). Conversely, if the secondary has half the number of turns, the output voltage will be half the input voltage (a step-down device).

What are the Different Types and Their Applications?

They come in various types, each designed for specific applications:

• Step-Up Transformers: Increase the voltage from primary to secondary winding. Used in power generation plants to transmit electricity over long distances with minimal losses.
• Step-Down Transformers: Decrease the voltage from primary to secondary winding. Commonly used in distribution networks to provide safe voltage levels for residential and commercial use.
• Isolation Transformers: Provide electrical isolation between circuits without changing the voltage levels significantly. Used for safety and noise reduction in sensitive equipment.
• Autotransformers: Share a common winding for both primary and secondary circuits. They are more compact and efficient for applications requiring small voltage adjustments.
• Instrument Transformers: Include current and potential transformers, used for measuring high voltages and currents in power systems safely.

An AC transformer finds diverse applications in various fields, including:

• Power Transmission and Distribution: High voltage devices are used to step up voltage at power plants for efficient long-distance transmission, while step-down devices reduce the voltage to safer levels for distribution to homes and businesses.
• Electronics: Small devices are used in power supplies for electronic devices to convert high voltage AC from the mains to lower DC voltages required by electronic components.
• Industrial Applications: Medium and large devices power industrial machinery, motors, and other equipment that require specific voltage levels.

What are the Key Factors to Consider When Selecting an AC Transformer?

When selecting an AC transformer, consider the following factors:

• Voltage Levels: Ensure the device matches the required input and output voltage levels for your application.
• Power Rating: The deviceshould handle the maximum power load without overheating. Power rating is usually specified in volt-amperes (VA) or kilovolt-amperes (kVA).
• Frequency: The operating frequency of the device should match the frequency of the power supply.
• Efficiency: High efficiency is crucial to minimize hysteresis losses during voltage transformation.
• Cooling Method: Depending on the application, choose between air-cooled, oil-cooled, or other cooling methods to maintain optimal operating temperatures.
• Regulatory Standards: Ensure compliance with industry standards and regulations for safety and performance.
• Environmental Conditions: Consider factors like temperature, humidity, and exposure to corrosive elements when selecting a device for specific environments.

They are vital for adjusting voltage levels in electrical systems and ensuring efficient power distribution across various applications. By understanding their components, working principles, and the different types available, you can select the appropriate device for your specific needs. Choosing the right device for high-voltage transmission, power supplies in residential areas, or specialized industrial applications is key to achieving optimal performance and reliability.

An AC transformer is an indispensable component in modern electrical systems, facilitating the efficient and safe transmission and distribution of electrical energy. By understanding their working principles, types, and selection criteria, you can harness their power to optimize your electrical systems and ensure a reliable power supply for your needs.
