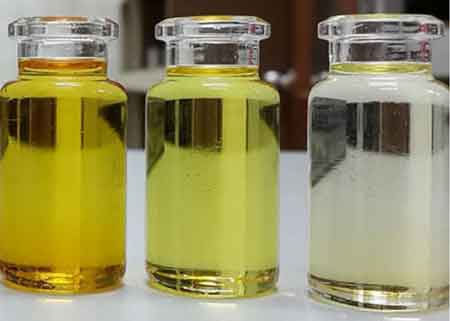

Transformer oil insulates and cools power transformers, helping prevent electrical breakdowns and dissipating heat. It also protects internal components from oxidation and moisture. Used in high-voltage applications, transformer oil ensures system reliability and extends the lifespan of equipment.



What is Transformer Oil?

Transformer oil, also known as insulating oil, plays a critical role in the electrical power industry. It provides essential insulation and thermal management for power transformers, circuit breakers, and other high-voltage electrical equipment.

✅ Provides electrical insulation and prevents short circuits

✅ Dissipates heat to maintain transformer efficiency

✅ Resists moisture, oxidation, and chemical degradation



Electrical Transformer Maintenance Training

Substation Maintenance Training

Request a Free Training Quotation

There are mainly two types of dielectric fluid: mineral oil and synthetic oil. Mineral oil is derived from petroleum and has been the most commonly used type due to its availability and affordability. On the other hand, synthetic oils, such as silicone- or ester-based fluids, are gaining popularity due to their improved environmental and performance characteristics. To understand how power transformers work, it is essential to examine the role of transformer insulating fluid in regulating temperature and preventing insulation failure.

One of the primary functions of insulating fluid is to provide electrical insulation between the live parts of the transformer and the grounded metal enclosure. This is achieved by its high dielectric strength, which refers to the oil's ability to withstand high voltage without breaking down. Additionally, it must possess excellent oxidation stability to resist chemical breakdown over time. Testing is essential for transformer condition monitoring in the era of modernization, ensuring systems operate efficiently and avoid breakdowns.




Another critical property of dielectric fluid is its ability to dissipate heat generated by the unit. High temperatures can significantly reduce the efficiency and lifespan of the equipment, so oil with a high flash point is essential. This ensures the transformer oil can withstand high temperatures without igniting or producing harmful gases.

Transformer maintenance plays a crucial role in ensuring the reliability and longevity of power transformers. One of the critical aspects of care is testing, which involves analyzing the oil for various parameters, such as dielectric strength, acidity, moisture content, and dissolved gas content. These tests help identify any issues with the fluid, which can indicate potential problems with the device. Transformer oil diagnostics are particularly relevant for evaluating the health of high-voltage transformers exposed to extreme electrical stress.



Dissolved Gas Analysis and Oil Contamination Risks

Dissolved Gas Analysis (DGA) is one of the most effective and widely used diagnostic techniques for evaluating the health of power units. As insulating fluid degrades over time or is exposed to abnormal electrical or thermal conditions, it generates various gases as byproducts of internal chemical reactions. DGA involves measuring the concentration and composition of these dissolved gases to detect potential issues such as partial discharges, overheating, arcing, or insulation breakdown.

Different gases serve as indicators of specific problems. Elevated hydrogen and methane levels often indicate partial discharges, while increased ethylene and acetylene levels can suggest localized overheating or arcing. By identifying these warning signs early, DGA enables proactive maintenance that helps prevent unexpected failures, equipment damage, and costly service interruptions—particularly in critical systems, such as electrical substation transformers.

Beyond gas generation, contamination of transformer oil is another serious concern. One of the most hazardous contaminants is polychlorinated biphenyls (PCBs), which were once widely used as dielectric fluids due to their excellent insulating properties. Today, PCBs are recognized as toxic environmental pollutants, prompting strict regulations regarding their detection, removal, and disposal. Additionally, excessive moisture or particulate matter can compromise the transformer oil’s insulating strength, resulting in a decrease in dielectric performance and an increased risk of failure.

Routine oil analysis, including DGA, moisture content tests, and particle counting, plays a vital role in maintaining oil integrity and ensuring the reliable operation of high-voltage electrical equipment. By addressing contamination and degradation early, operators can significantly extend the service life of both the dielectric fluid and the transformer itself.

Regular maintenance of electrical substation transformers includes monitoring oil conditions to prevent costly service interruptions.



Overview of Transformer Oil – Properties, Types, and Diagnostics

Category Details
Primary Functions - Electrical insulation- Heat dissipation- Moisture and oxidation protection
Common Applications - Power transformers- Circuit breakers- High-voltage switchgear
Types of Oil - Mineral Oil: Petroleum-based, cost-effective- Synthetic Oil: Silicone or ester-based, environmentally safer
Key Properties - High dielectric strength- High flash point- Oxidation stability
Diagnostic Tests - Dissolved Gas Analysis (DGA): Detects internal faults- Dielectric Strength: Measures voltage breakdown resistance- Moisture Content: Assesses water contamination- Acidity Test: Indicates chemical aging- Particle Count: Identifies solid contamination
Maintenance Actions - Oil filtration (removal of water, gases, particles)- Oil regeneration (restores chemical properties)- Safe disposal of PCB-contaminated oil
Environmental Concerns - PCB toxicity and disposal regulations- Oil leakage risks to soil and water



Transformer Oil Purification and Regeneration

Oil purification and regeneration are essential for mitigating contamination and extending the lifespan of the dielectric fluid. Oil filtration is a process that removes water, gases, and particulate matter from the oil, while oil regeneration involves restoring the transformer oil's properties through chemical treatments and adsorption processes. These procedures help maintain the oil's performance, reduce maintenance costs, and extend the unit's life.

The disposal raises environmental concerns due to its potential to contaminate soil and water sources. Therefore, proper disposal methods, such as recycling or incineration in specialized facilities, must be followed to minimize environmental impact.

It is a critical component in operating and maintaining electrical power equipment. Its unique properties, such as high dielectric strength and thermal dissipation, make it indispensable in ensuring the safe and efficient operation of power transformers. Regular testing, maintenance, and disposal practices are essential to protect these valuable assets and the environment.



Transformer Oil Diagnostics: A Key to Ensuring Electrical System Health

Diagnostics are vital in ensuring the reliable and efficient operation of power transformers and other high-voltage electrical equipment. By monitoring the condition of the insulating fluid, maintenance personnel can identify potential issues within the unit and address them before they escalate, preventing expensive repairs or catastrophic failures. This article examines various diagnostic techniques used to evaluate equipment health and the advantages of regular testing. Proper cooling and insulation in distribution transformers depend on clean, high-quality transformer oil.




Dielectric Strength Testing

Dielectric strength refers to the ability of the oil to withstand high voltage without breaking down. The dielectric strength of the dielectric fluid is crucial to ensure the safe operation of the unit. Dielectric strength testing measures the voltage at which the transformer fluid breaks down, allowing maintenance personnel to assess its insulating capabilities.

A decrease in dielectric strength can be attributed to factors such as contamination, aging, or excessive moisture. Identifying these issues early allows corrective measures, such as purification or replacement, to be taken. Our guide on transformer insulation explains how dielectric fluid complements solid dielectric materials to improve overall electrical performance.


Moisture Content Analysis

Excessive moisture in oil can significantly impact its insulating properties, leading to a reduction in dielectric strength. In addition, moisture can enter the unit through leaks, improper sealing, or as a byproduct of the aging process. Moisture content analysis measures the amount of water in the insulating fluid, helping identify potential risks to the unit's performance and lifespan.


Acidity Testing

Oil's acidity is an indicator of its chemical breakdown due to oxidation. As the oil ages, acidic compounds are formed, which can corrode the unit's internal components and reduce its insulating properties. Acidity testing measures the concentration of these acidic compounds, enabling an assessment of the transformer oil's condition and determining the need for regeneration or replacement.


Particle Counting

Contamination of transformer oil by particulate matter can also compromise its insulating properties. This can result from wear and tear of the unit's components, ingress of external contaminants, or the breakdown of the oil itself. Particle counting measures the number and size of particles in the dielectric fluid, helping identify contamination issues and the need for filtration.

Regular transformer oil diagnostics provide valuable information about the condition of the insulating fluid and the unit itself. Implementing a routine testing program enables maintenance personnel to detect potential issues early, ensuring the reliable and efficient operation of power transformers and other high-voltage electrical equipment. With a proactive approach to transformer oil diagnostics, the risk of unexpected failures, downtime, and costly repairs can be minimized, ultimately prolonging the life of these critical assets.
