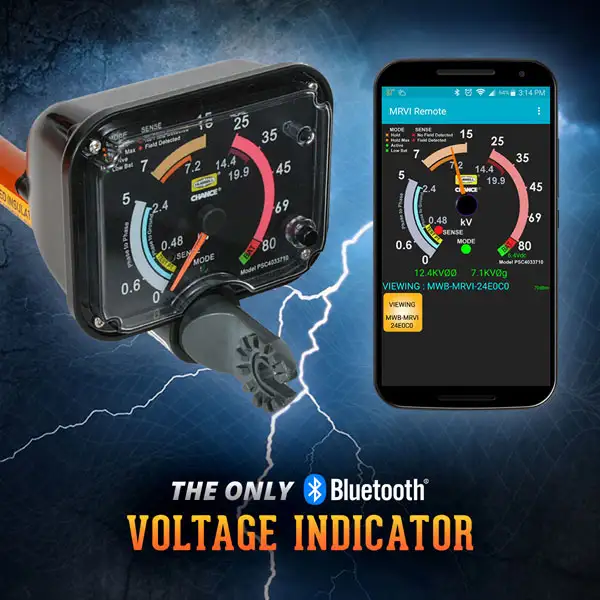

CHANCE® Multi-Ranging Voltage Indicator - Distribution (PSC4033710)

The ONLY indicator to use Bluetooth, this portable tool confirms whether an AC high voltage circuit is energized or de-energized prior to performing maintenance.

Readings from the MRVI represent the class of voltage that is present on the line. The MRVI is designed to determine approximate Phase-to-Phase and Phase-to-Ground nominal voltage up to 80 kV AC, 50/60 Hz.

This unit is a direct contact electric field intensity indicator.

The MRVI is used as a secondary means to confirm the condition of a circuit after principal work procedures such as visible open gaps, dispatcher hold orders, and apparatus tag-outs have rendered the circuit de-energized.

Features

• Meets intent of OSHA 1910.269 to test for absence of nominal voltage
• Capacitive test point through 80 kV AC for overhead and underground systems
• Stepper motor technology
• Illuminated fluorescent pointer
• Power-saving sleep mode (auto-off)
• Checks battery voltage on initial startup
• Positive interface power button
• Equivalent Phase-to-Phase and Phase-to-Ground reading ranges
• Manually activated Hold Mode
• New lightweight design (19.8 oz without batteries)
• Battery drawer for simple battery replacement
• Comes with storage bag to snaphook to a lineman's belt
• QR code located in the instructions, Quick Reference guide, and the unit
