Digital Protection Relay for Transformer Protection

Digital protection relay systems for power transformers use differential protection, harmonic restraint, CT ratio matching, and nameplate data to detect faults while preventing false trips during inrush, overexcitation, and commissioning errors in modern power systems.

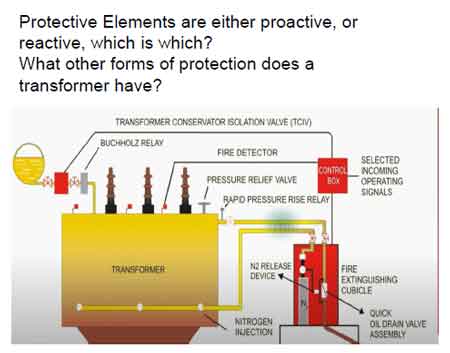

A digital protection relay protects power transformers by comparing electrical conditions across the transformer windings and initiating a trip when internal faults are detected. These relays combine differential protection, overcurrent elements, and voltage-based functions to detect abnormal conditions while maintaining stability during normal operation.

In transformer applications, the relay must distinguish between internal faults, through faults, and normal operating events such as energization. Internal faults are detected primarily through differential elements, while through faults and system disturbances are handled through restraint logic and coordination with other protection devices.

The challenge is not detection alone. The relay must remain secure during high current events such as transformer inrush or system faults outside the protected zone. Misoperation during these conditions is a common commissioning issue and is often linked to incorrect settings derived from transformer data.

Nameplate data drives relay settings

Digital protection relay configuration begins with transformer nameplate data. Key parameters include transformer MVA rating, primary and secondary voltages, vector group, impedance, and current transformer ratios. These values directly determine relay tap settings and scaling factors.

Incorrect interpretation of nameplate data leads to incorrect differential current calculations. For example, swapping the high- and low-side voltages or applying incorrect CT ratios can result in a false differential current, which may cause unintended trips. Tap settings must often be calculated manually, reinforcing the need for engineering validation rather than reliance on default system values.

A proper Transformer Protection scheme depends on accurate inputs, since every protection element derives its scaling from this data.

A common commissioning error is leaving factory settings unchanged. This disconnect between relay configuration and actual transformer characteristics increases the risk of misoperation under both normal and fault conditions.

Differential protection and dual slope behavior

Transformer differential protection relies on comparing the current entering and leaving the transformer. Under normal conditions, these currents are balanced when properly scaled. During internal faults, the imbalance exceeds a defined threshold, causing the relay to trip.

This behavior is central to how a Transformer Protection Relay determines whether a condition is internal or external to the protected zone.

Digital protection relays use a dual slope characteristic to maintain stability. Slope 1 accounts for steady-state errors such as CT mismatch, tap changer position, and excitation current. Slope 2 addresses transient conditions such as CT saturation during through faults.

If slope settings are too low, the relay becomes sensitive but unstable, increasing the risk of false trips. If set too high, the relay may fail to detect low-level internal faults. The engineering decision is balancing security and dependability based on expected system behavior.

Harmonic restraint and inrush discrimination

Transformer energization produces inrush current that can resemble internal faults. Digital protection relays use harmonic restraint or blocking to prevent tripping during this condition.

Traditional methods rely on second and fourth harmonic content to identify inrush. If harmonic content exceeds a threshold, the differential element is restrained. However, newer transformers with high-flux-density cores may produce lower harmonic content, thereby reducing the effectiveness of this approach.

These behaviors extend from the core principles explained in What is Protective Relay, but require additional tuning for transformer-specific applications.

This creates a critical tradeoff. High restraint settings improve security but increase the risk of false trips in modern transformers. Lower restraint settings improve sensitivity but may allow unwanted tripping during energization.

Configuration errors and misoperation risks

Most relay misoperations occur during commissioning due to configuration errors rather than hardware failure. Common issues include incorrect CT polarity, wrong vector group selection, and mismatched voltage inputs.

Incorrect mapping of relay outputs and failure to enable event recording functions also reduce visibility into relay performance. Without oscillography and sequence-of-events data, diagnosing misoperation becomes difficult.

Backup protection elements, such as Overcurrent Protection, must also be aligned with differential settings to avoid coordination conflicts during faults.

Understanding these failure modes is essential because automated relay software does not eliminate configuration risk. It simplifies input but does not validate engineering correctness.

Testing and validation of relay settings

Relay testing must confirm both wiring integrity and functional behavior. Initial tests verify that restraint current is present without differential pickup, confirming correct configuration.

Commissioning procedures should follow structured methods outlined in Protective Relay Testing to ensure repeatable validation.

Further tests include minimum pickup verification, slope testing, and harmonic restraint validation. These tests ensure that the relay responds correctly across operating regions and does not trip under expected non-fault conditions.

Testing must reflect real operating conditions. Changing settings solely for testing purposes introduces risk if those settings are not restored before energization.

Overexcitation and system condition impacts

Digital protection relays also incorporate voltage and frequency-based elements such as V per Hz protection. Transformer core flux is proportional to voltage and inversely proportional to frequency, making the relay sensitive to overexcitation conditions.

Overexcitation does not always exceed dielectric limits but can cause thermal damage over time. This creates a different protection requirement compared to overvoltage events.

Ground fault behavior during these conditions must also align with Ground Fault Protection to ensure low magnitude faults are not masked by restraint logic.

System conditions such as generator load rejection, islanding, and reactive power imbalance can create overexcitation events. Protection settings must coordinate with generator controls and system behavior.

An important edge case occurs when harmonic restraint blocks differential protection during overexcitation. In such cases, raising the differential pickup level instead of blocking the element improves both security and fault detection.

Operational consequence and decision context

An incorrectly configured digital protection relay does not fail gracefully. It either trips unnecessarily, causing outages, or fails to trip during an internal fault, risking catastrophic transformer damage.

Coordination with switching devices such as a Circuit Breaker in Substation determines how quickly faults are isolated once detected.

This creates a direct operational consequence. Protection settings are not administrative inputs. They determine whether a multi-million dollar asset remains in service or fails under fault conditions.

The decision is not simply how to configure the relay. It is about ensuring that the relay reflects the actual transformer and system conditions, including modern design changes that alter expected behavior.
