Types of Capacitors

Energy is the capacity to do work, powering motion, heat, and electricity. It exists in many forms—kinetic, potential, chemical, thermal, and renewable—transforming constantly to sustain life, industry, and the universe itself.

What is Energy?

Energy is a fundamental concept in physics that describes the capacity of a physical system to perform work. In a sense, energy is the ability to do work.

✅ Exists in forms like kinetic, potential, thermal, chemical, and electrical

✅ Transforms between forms but is conserved under physical laws

✅ Powers human activity, industry, and natural processes

To fully understand what energy is, it helps to start with Basic Electricity, which explains the foundation of how electrical systems operate in daily life.

It can be created or released through chemical reactions, nuclear reactions, and electromagnetic waves. Energy is classified into various types based on its origin, nature, and form, including mechanical, thermal, chemical, electrical, radiant, gravitational, nuclear, and sound. With the rise of technology and the global population, energy use has surged, intensifying the demand for alternative and renewable energy sources such as solar, wind, hydropower, and geothermal.

History and Conceptual Origins

The word "energy" comes from the Greek "energeia," meaning activity or operation. Ancient philosophers, such as Aristotle, used it to describe vitality and action. In the 17th to 19th centuries, scientists such as Newton, Joule, and Helmholtz formalized energy as a measurable quantity in mechanics and thermodynamics. By the 20th century, Einstein’s equation E = mc² had shown that mass itself is a form of energy, reshaping physics and cosmology.

The Law of Conservation of Energy

The law of conservation of energy states that the total amount of energy in a closed system remains constant. Energy cannot be created or destroyed; it can only change form. Whether in chemical reactions, mechanical systems, or nuclear processes, the initial and final total energy always balances.

Energy is typically measured in joules (J). One joule equals the work done when a force of one newton moves an object one meter. Larger quantities are measured in kilojoules (kJ) or kilowatt-hours (kWh), which are commonly used in electricity billing.

The Mathematics of Energy

Energy is quantified with precise formulas:

• • Kinetic energy: KE = ½ mv²

  • Potential energy: PE = mgh

  • Work: W = F × d

These equations demonstrate how motion, position, and force are translated into measurable energy. The joule is equivalent to newton × meter, tying energy directly to mechanics.

What is Energy Transformation and Efficiency

Energy transformations follow the principles of thermodynamics, where no process is perfectly efficient. For example, in an engine, the conversion of chemical fuel into mechanical work produces useful power, but some energy is always lost as heat. These limitations underscore the importance of studying energy efficiency in both engineering and environmental science.

In real systems, energy constantly transforms:

• Combustion in engines: chemical → thermal → mechanical → electrical

• Solar panels: radiant → electrical

• Hydropower: gravitational potential → kinetic → electrical

Yet no process is perfectly efficient. Friction, resistance, and heat losses dissipate useful energy, echoing the second law of thermodynamics and the concept of entropy. This inefficiency shapes the design of power plants, engines, and renewable systems.

Different Types of Energy?

Energy can be classified into various types based on origin, nature, and form. Each type has unique characteristics, examples, and applications in everyday life and industry.

Mechanical Energy

Mechanical energy is the energy of motion or position. It includes:

• Potential energy – stored energy due to position or configuration (e.g., water behind a dam).

• Kinetic energy – energy of motion (e.g., a moving car).
  Mechanical energy is widely used in engines, turbines, and machines.

Thermal Energy

Thermal energy is related to the temperature of an object or system, arising from the kinetic motion of its atoms and molecules. It transfers between objects as heat. Everyday examples include boiling water, heating systems, and combustion engines.

Chemical Energy

Chemical energy is stored in the bonds of molecules and released during chemical reactions. Examples include gasoline fueling a car, food fueling our bodies, and batteries powering electronics. It underpins most biological and industrial processes.

Electrical Energy

Electrical energy results from the movement of electrons through a conductor. It powers lighting, electronics, appliances, and the global power grid. It is easily transported and converted into other forms of energy. Since energy drives current flow, learning about Electrical Energy and how it relates to Voltage and Current makes the concept more practical.

Radiant Energy

Radiant energy is carried by electromagnetic waves, including visible light, radio waves, and microwaves. It enables vision, communication systems, and solar power technology. Sunlight is the most significant source of radiant energy on Earth.

Gravitational Potential Energy

Gravitational energy is stored by objects in a gravitational field due to their height or mass. Lifting an object, climbing a hill, or operating a hydroelectric dam all rely on gravitational potential energy.

Nuclear Energy

Nuclear energy is released during atomic reactions, such as fission (splitting nuclei) or fusion (combining nuclei). It is harnessed in nuclear power plants to generate electricity and powers stars through fusion.

Sound Energy

Sound energy comes from the vibrations of particles in a medium such as air, water, or solids. It is essential in communication, music, sonar, and countless daily experiences.

Comparison Table of Energy Forms

What is Energy in Everyday Life?

Energy is used in numerous everyday activities, including heating and cooling homes, cooking, transportation, communication, and entertainment. Energy use has increased dramatically with the growth of technology and the global population. However, the availability of energy sources is limited, and the demand is increasing. This has led to a search for alternative and renewable energy sources, such as solar, wind, hydropower, and geothermal energy. The physics of 3 phase electricity and 3 phase power demonstrates how energy is efficiently distributed through modern power grids.

Renewable energy sources, such as solar energy, are gaining popularity due to their clean, sustainable, and renewable nature. Solar energy is derived from the sun's radiation and can be converted into electricity through photovoltaic (PV) cells or concentrated solar power (CSP) systems. Solar energy is utilized for various purposes, including generating electricity, heating water, and drying crops. The relationship between energy, Active Power, and Reactive Power is key to understanding how electricity performs useful work.

What is Energy in Physics?

In physics, the concept of energy is closely tied to thermodynamics, which explains how heat and work are transferred within systems. The law of conservation of energy ensures that energy is never lost, only changed in form through conversion processes. Whether it is the power delivered by an engine, the work performed by a force, or the density of energy stored in fuels and batteries, different forms of energy shape how the physical world operates and how technology supports human progress.

• Biology: Cells use chemical energy stored in ATP for growth and repair.

• Physics: Einstein’s equation E = mc² links matter and energy, essential in cosmology and nuclear physics.

• Engineering: Modern grids rely on energy storage (batteries, pumped hydro), demand response, and smart systems to balance supply and demand.

Energy principles are also explained through fundamental laws, such as Ohm’s Law and Ampere’s Law, which connect voltage, current, and resistance.

Future of Energy

As global demand increases, the future of energy will focus on improving storage systems and raising energy density in fuels and batteries. Advances in renewable systems must also balance the conservation of resources with reliable power delivery. New technologies are being developed to optimize energy conversion and minimize losses, ensuring sustainable solutions for future generations. The future hinges on decarbonization, the integration of renewable energy, and global policy shifts. Fossil fuel limitations and climate change demand innovation in:

• Large-scale storage (lithium batteries, hydrogen fuel cells).

• Grid modernization and smart energy management.

• Sustainable policy frameworks balancing demand with environmental limits.

Energy is not only a scientific concept but also a central issue shaping economies, technology, and our planet’s survival.

How is energy measured and quantified?

Energy is typically measured in joules (J) or kilojoules (kJ). The joule is the unit of measurement for energy in the International System of Units (SI). For example, one joule is the amount of energy needed to move an object with a force of one newton (N) over a distance of one meter (m). Kilojoules (kJ) measure larger amounts of energy, such as the energy content of food or the energy output of power plants.

Energy measurements vary depending on the forms being studied. For instance, thermal systems adhere to the laws of thermodynamics, whereas electrical systems prioritize power output and efficiency. Units like joules, calories, and kilowatt-hours quantify the work done, while energy density helps compare fuels and storage methods in practical applications.

Beyond joules, energy is measured in:

• Calories – food energy.

• BTU (British Thermal Unit) – heating and fuel.

• Kilowatt-hours – electricity billing.

Conversions between units help bridge the gap between physics, engineering, and daily life. For example, a 100-watt light bulb consumes 100 joules every second.

Frequently Asked Questions

What is the difference between energy and power?

Energy is the capacity to do work; power is the rate of energy transfer, measured in watts (joules per second).

Can energy be created?

No. According to the law of conservation, energy cannot be created or destroyed, only transformed.

What is energy density?

Energy density refers to the amount of energy stored per unit mass or volume, which is particularly important in fuels and batteries.

How is energy related to thermodynamics?

The first law describes conservation; the second law explains inefficiencies and entropy.

Related Articles

• Electricity Fundamentals

• Electricity Questions

• Electricity History

• Energy Storage Channel

Alternating current (AC) is a type of electrical flow where the direction of current reverses periodically. Used in most homes and industries, AC is efficient for long-distance transmission and powers devices like motors, lights, and appliances through oscillating voltage.

What is Alternating Current?

Alternating current is a fundamental aspect of electrical systems that have shaped our world in countless ways. Its ability to be easily generated, converted to different voltages, and transmitted over long distances has made it the preferred choice for power transmission and distribution. Additionally, the many advantages of AC, such as compatibility with various devices and safety features, have made it indispensable in our daily lives.

✅ Powers homes, businesses, and industrial equipment through reliable energy transmission.

✅ Changes direction periodically, unlike DC, which flows one way.

✅ Enables long-distance energy delivery with reduced power loss.

To answer the question: What is alternating current? We need to first understand the role of a conductor, which is essential in AC systems, as conductors carry the oscillating electrical energy throughout circuits.

Understanding AC and DC

In the world of electricity, there are two primary forms of electric current: alternating current (AC) and direct current (DC). Understanding the distinctions between these two types of currents and their applications in daily life is essential to appreciate the advances in electrical engineering and the technology that surrounds us. A multimeter is commonly used to measure AC voltage and current in residential and industrial electrical systems.

AC vs. DC: Basic Differences

AC and DC are two distinct methods by which electric charge is transferred through a circuit. AC involves the flow of charge that periodically reverses direction, creating a waveform typically resembling a sine wave. On the other hand, DC refers to the flow of charge in a single, constant direction. The differences in their nature, functionality, and applications create a contrasting landscape in the electrical power sector. Devices like the voltmeter are specifically designed to measure AC or DC voltage, helping technicians verify circuit functionality and safety.

Why AC Is Preferred for Power Transmission

One key reason why AC is preferred over DC is its ability to easily convert to and from high voltages, making electric power transmission across long distances more efficient. Additionally, transformers can increase or decrease AC voltage, resulting in minimal power loss during long-distance transmission. In contrast, DC power cannot be altered as conveniently, making it less suitable for power transmission over extended distances.

How Alternating Current Works

The working principle of AC is centred around the changing magnetic field created by the flow of electric current. As the current changes direction, the magnetic field also alternates, inducing a voltage in the nearby conductors. This property of AC is fundamental to the operation of AC generators and transformers.

• AC operation is based on electromagnetic induction

• Rreversal creates alternating magnetic fields

• Voltage is induced in nearby conductors

The Role of Nikola Tesla in AC Development

The invention of AC can be attributed to multiple individuals, but the Serbian-American inventor, Nikola Tesla, is often credited with pioneering AC systems. Tesla's work on AC power transmission and his development of the induction motor helped establish AC as the dominant form of electricity.

Frequency: 50 Hz vs. 60 Hz

In frequency, the terms 50-cycle and 60-cycle AC refer to the number of times the current changes direction in one second. The frequency of AC power varies globally, with 50 Hz being the standard in many parts of Europe, Asia, and Africa, while 60 Hz is the norm in North America.

• 50 Hz is standard in Europe, Asia, and Africa

• 60 Hz is common in North America

• Frequency affects compatibility and performance of electrical devices

This difference in frequency can affect the operation of certain appliances and devices, making it essential to use the appropriate frequency for the intended purpose.

Advantages of Alternating Current

The advantages of AC over DC extend beyond efficient power transmission. AC is easier to generate and is widely used for electric power generation, making it more accessible and cost-effective. Moreover, AC systems are safer as they can be easily switched off when required, reducing the risk of electrical accidents. AC is versatile and can power various devices, from small household appliances to large industrial machines.

Key benefits of AC:

• Easily transformed to higher or lower voltages

• Safer switching and control in circuits

• Powers a wide range of residential and industrial devices

How AC Is Generated and Transmitted

The generation and transmission of AC are crucial components of the electrical power infrastructure. AC is generated through various means, such as hydroelectric, thermal, and nuclear power plants, which use generators to convert mechanical energy into electrical energy.

Transmission components:

• Transformers: Adjust voltage levels

• Transmission towers: Carry high-voltage lines

• Substations: Regulate voltage for safe end-use

Once generated, AC is transmitted through power lines that consist of transformers, transmission towers, and substations, which adjust the voltage levels for efficient distribution and usage.

The Role of AC in Daily Life

AC plays a vital role in our daily lives, as it powers most of the appliances and devices we rely on, including lights, computers, and household appliances. In addition, its compatibility with transformers, ease of generation, and ability to transmit power over long distances make it a cornerstone of modern electrical systems.

Frequency has a notable impact on AC usage. In addition to determining the compatibility of devices with a region's power supply, the frequency of AC power affects the speed and performance of electrical motors. A change in frequency may result in the motor operating at a different speed or, in some cases, causing it to malfunction.

Transformers are essential devices in AC systems, as they adjust voltage levels to meet the requirements of various applications. They function by utilizing the principle of electromagnetic induction, where a changing magnetic field in the primary coil induces a voltage in the secondary coil. By adjusting the number of turns in the coils, transformers can efficiently increase or decrease the voltage of AC power, depending on the specific application's needs.

The differences between AC and DC are crucial in understanding the diverse landscape of electrical power. The invention of AC by Nikola Tesla and other inventors has revolutionized the way electricity is generated, transmitted, and utilized. With an appreciation for the characteristics and applications of AC, we can gain a deeper understanding of the technology and infrastructure that powers our world.

How Does Alternating Current Work?

AC works by periodically reversing the direction of the electric charge flow within a circuit. In contrast to DC, which flows in a constant direction, AC oscillates back and forth. This oscillation is typically represented as a waveform, often in the shape of a sine wave. Let's dive deeper into how AC works.

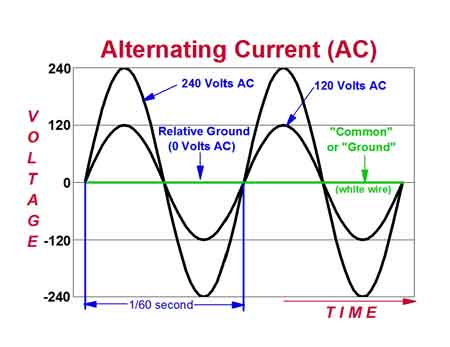

AC is characterized by a waveform that typically takes the shape of a sine wave, allowing for smooth and continuous changes in voltage over time. This makes it ideal for long-distance transmission across the power grid, where electricity generated by a generator must travel efficiently to homes and businesses. The frequency of this current—measured in cycles per second or hertz (Hz)—determines how rapidly the voltage changes direction, impacting device performance and grid efficiency. As current flows through a conductor, it can be stepped up or down using a transformer, enabling voltage levels to be optimized for safe and effective delivery.

Generation: AC is generated using a rotating magnetic field to induce an electric current in a conductor. This is done using devices such as generators and alternators, which convert mechanical energy into electrical energy. In these devices, a coil of wire rotates within a magnetic field, or a magnet rotates around a stationary coil. This rotation causes the magnetic field to interact with the conductor, inducing a voltage and, consequently, an electric current that changes direction periodically.

Waveform: The alternating nature of AC is depicted by a waveform, which shows the voltage or current as a function of time. The most common waveform for AC is the sine wave, which can also take other forms, such as square or triangular waves. The waveform's shape determines the characteristics of the AC and how it interacts with various electrical components.

Frequency: One important parameter of AC is its frequency, which indicates the number of complete cycles the current undergoes per second. It is measured in hertz (Hz). Common frequencies include 50 Hz and 60 Hz, but other frequencies can also be used depending on the application. The frequency of the AC power supply affects the performance and compatibility of devices and equipment connected to it.

Voltage and current relationship: In an AC circuit, the voltage and current can be in phase (i.e., they reach their peak values simultaneously) or out of phase (i.e., they reach their peak values at different times). The phase relationship between voltage and current in an AC circuit can significantly impact power delivery and system efficiency. A voltage sag can disrupt sensitive equipment, making voltage regulation a key part of power quality analysis.

Transformers: A key advantage of AC is that its voltage can be easily changed using transformers. Transformers operate on the principle of electromagnetic induction, where a changing magnetic field in the primary coil induces a voltage in the secondary coil. By adjusting the number of turns in the coils, the transformer can step up or down the AC voltage as needed. This ability to adjust voltage levels makes AC an efficient choice for long-distance power transmission.

Frequently Asked Questions

What is the formula to calculate alternating current?

To calculate the value of AC at any given time, you need to know the current's amplitude (maximum value) and the angular frequency. The general formula for calculating instantaneous current in an AC circuit is:

i(t) = I_max * sin(ωt + φ)

Where:

• i(t) is the instantaneous current at time t

• I_max is the amplitude or peak current

• ω (omega) is the angular frequency, calculated as 2πf (where f is the frequency in hertz)

• t is the time at which you want to calculate the current

• φ (phi) is the phase angle, which accounts for any phase shift between the voltage and the current waveforms

Remember that this formula assumes a sinusoidal waveform, the most common form of AC. If the waveform is not sinusoidal, the formula will be different and depend on the specific shape of the waveform.

Another important value for AC circuits is the root-mean-square (RMS) current, which measures the effective value of the current. The RMS current is useful for calculating power in AC circuits and can be compared to the steady current value in DC circuits. The formula to calculate RMS current from the peak current is as follows:

I_RMS = I_max / √2

Where:

• I_RMS is the root-mean-square current

• I_max is the amplitude or peak current

• √2 is the square root of 2, approximately 1.414

• Using these formulas, you can calculate the instantaneous current value for an alternating current waveform and determine the effective or RMS current value.

To understand how voltage affects electrical circuits, it's essential to examine how voltage drop can lead to energy loss, particularly over long distances.

Related Articles

• Electricity Fundamentals

• Electricity Questions

• Electricity History

A capacitor is an electrical component that stores and releases energy in a circuit. It consists of two conductive plates separated by an insulator and is commonly used for filtering, power conditioning, and energy storage in electronic and electrical systems.

What is a Capacitor?

A capacitor is a key component in electronics and power systems. It temporarily stores electrical energy and is widely used in both AC and DC circuits.

✅ Stores and discharges electrical energy efficiently

✅ Used in filtering, timing, and power factor correction

✅ Found in electronics, motors, and power supplies

It is designed for energy storage and can store electric charges, which can be released when needed. In this article, we will delve into the fundamentals of capacitors, including their functions, types, and applications. To better understand how capacitors support overall system performance, explore our Power Quality overview covering the fundamentals of voltage stability and energy flow.

Power Quality Analysis Training

Power Factor Training

Request a Free Power Quality Training Quotation

A capacitor consists of two metallic plates separated by an insulating material known as the dielectric. The dielectric can be made from various materials, such as mica, paper, or ceramic. When voltage is applied across the plates, positive charges accumulate on one plate, while negative charges accumulate on the opposite plate. The amount of capacitor charge that can be stored depends on several factors, including plate area, plate separation, dielectric material, and voltage ratings. Capacitors are often used in capacitor banks to improve power factor and reduce energy losses in electrical systems.

How does a capacitor work? The primary function of a capacitor in an electronic circuit is to store electrical energy. Capacitors can be used for various purposes, such as filtering, timing, and coupling or decoupling signals. In addition, they play a crucial role in power supplies, ensuring that the output voltage remains stable even when there are fluctuations in the input voltage. Learn how capacitive loads influence circuit behavior and why they require precise capacitor selection for optimal performance.

A capacitor stores energy through the electrostatic field created between its plates. The stored energy can be calculated using the formula E = 0.5 * C * V^2, where E is the stored energy, C is the capacitance, and V is the voltage across the capacitor. Capacitance, measured in Farads, is a measure of a capacitor's ability to store charge. The capacitor voltage rating is crucial for ensuring safe operation and preventing dielectric breakdown during voltage spikes.

So, when I am asked what is a capacitor? I tell readers about several types of capacitors, each with unique applications. Common types include ceramic, electrolytic, film, and tantalum capacitors. Ceramic capacitors are widely used due to their low cost and small size. They are ideal for high-frequency applications and decoupling in power supply circuits. On the other hand, Electrolytic capacitors are popular for their high capacitance values and are commonly used in filtering and energy storage applications. Capacitors play a crucial role in power factor correction, enabling industrial systems to reduce demand charges and enhance energy efficiency.

Dielectric materials used in capacitors can be organic (such as paper) or inorganic (such as ceramic). The choice of dielectric material depends on factors like the desired capacitance value, voltage rating, and operating temperature range. Additionally, different dielectric materials exhibit varying properties, making them suitable for specific applications. For a deeper understanding of energy relationships, see how apparent power differs from real and reactive power in systems using capacitors.

A capacitor can be classified as polarized or non-polarized based on the presence or absence of polarity. Polarized capacitors, like electrolytic capacitors, have a positive and a negative terminal and must be connected correctly in a circuit to function properly. Non-polarized capacitors, like ceramic capacitors, do not have a specific polarity and can be connected in any orientation.

A Capacitor behaves differently in AC and DC voltage circuits. In DC circuits, once a capacitor is charged, it blocks the flow of current, essentially acting as an open circuit. However, in ac voltage circuits, capacitors allow the flow of alternating current. This phenomenon is known as displacement current, which occurs due to the continuous charging and discharging of charges.

So, what is a capacitor? Understanding what a capacitor is and how it works is essential for anyone interested in electronics. The Capacitor plays a vital role in a wide range of applications, from energy storage and filtering to signal coupling and decoupling. Understanding the various types of capacitors and their specific applications enables you to make informed decisions when designing or troubleshooting electronic circuits. Explore how an automatic power factor controller dynamically adjusts capacitor usage to maintain an efficient power factor in real-time.

Related Articles

• Power Quality Channel

A multimeter is an electrical testing instrument used to measure voltage, current, and resistance. Essential for electricians, engineers, and hobbyists, this device combines multiple diagnostic tools into one for troubleshooting circuits and ensuring safety.

What is a Multimeter?

A multimeter is a versatile electrical measurement tool that combines several functions into one device for testing and troubleshooting circuits.

✅ Measures voltage, current, resistance, and continuity

✅ Essential for electrical safety and diagnostic accuracy

✅ Used by electricians, engineers, and electronics hobbyists

This article will explore the features, types, and uses of multimeters, as well as answer some common questions about this indispensable tool.

Multimeters come in two primary forms: digital (DMMs) and analog multimeters. DMMs have a digital display, making them easy to read and providing more accurate electrical measurements. In contrast, analog meters use a needle on a dial to indicate the measured value. While digital multimeters are generally more popular due to their precision and ease of use, analog MMs can be useful for observing trends or changes in measurement. To fully understand what a multimeter is, it is helpful to place it within the broader category of electrical test equipment, which includes tools designed for measuring, diagnosing, and maintaining electrical systems.

Types of Multimeters

Different types of multimeters are designed to meet specific needs, from basic household troubleshooting to advanced industrial testing. Each type has unique strengths and limitations. Multimeters come in several forms:

• Digital Multimeters (DMMs) provide accurate digital readouts, often featuring auto-ranging, data hold, and true RMS capability for measuring complex AC waveforms. Resolution is expressed in digits or counts (e.g. 4½-digit, 20,000-count meters).

• Analog Multimeters: Use a moving needle to display values. While less precise, they are helpful for observing trends, fluctuations, or slowly changing signals. Their sensitivity is often expressed in ohms per volt (Ω/V).

• Clamp Multimeters: Measure current without breaking the circuit by clamping around a conductor. These are widely used in electrical maintenance and HVAC applications.

When comparing digital and analog devices, our guide to analog multimeters highlights how needle-based displays can still be useful for observing trends in circuits.

Comparison of Multimeter Types

Key Technical Concepts

One of the primary functions of a multimeter is to measure voltage. Voltage measurements can be made on both alternating current (AC) and direct current (DC) sources. To do this, the multimeter is connected to the circuit under test using red and black test probes. Therefore, selecting the appropriate measuring range and observing safety precautions when dealing with high voltages is essential. Learning how to use a digital multimeter provides step-by-step instruction for safely measuring voltage, current, and resistance.

Understanding the specifications of a multimeter helps ensure accurate and safe measurements:

• Input Impedance: High input impedance (commonly 10 MΩ) prevents the meter from disturbing the circuit under test.

• Burden Voltage: When measuring current, internal shunt resistors create a small voltage drop that can affect sensitive circuits.

• Resolution and Accuracy: Resolution defines the smallest measurable increment; accuracy indicates how close a reading is to the true value.

• True RMS vs Average Responding: True RMS meters provide accurate readings of non-sinusoidal waveforms, unlike average-responding meters.

• Fuse Protection and Safety Ratings: Quality multimeters include internal fuses and comply with IEC safety categories (CAT I–CAT IV), which define safe voltage levels for various environments.

• Probes and Ports: Good test leads, properly rated ports, and accessories are essential for both safety and accuracy.

Using a Multimeter

Multimeters can measure more than just voltage, current, and resistance. Depending on the model, they may also include additional functions that expand their usefulness, including:

• Voltage (AC/DC): Connect probes across the circuit. Select the correct range and observe safety precautions at high voltages.

• Current (AC/DC): Insert the meter in series with the circuit. Use the correct current jack and range to avoid fuse damage.

• Resistance: Connect probes across the component with power removed.

• Continuity: A beeping function confirms a complete connection between two points.

• Capacitance and Frequency: Many modern DMMs measure these directly.

• Diode Test and Temperature: Specialized modes test semiconductors or use thermocouples to measure heat.

Each function requires accurate probe placement, proper range selection, and adherence to safety guidelines. Because multimeters are often the first line of defence in electrical troubleshooting, they play a central role in diagnosing faults before moving on to more specialized instruments.

Choosing a Multimeter

The best multimeter for your needs depends on what you plan to measure, how often you’ll use it, and the environment where it will be used. Key factors include:

• Accuracy and Resolution (e.g. ±0.5% vs ±2%)

• Safety Ratings (IEC CAT I–IV, with higher CAT numbers for higher-energy environments)

• Features (autoranging, backlight, data logging, connectivity such as USB or Bluetooth)

• Build Quality (durability, insulated leads, protective case)

• Application Needs (bench meters for labs vs handheld DMMs for field use)

Applications and Use Cases

Due to their versatility, multimeters are utilized across various industries by both professionals and hobbyists. Common applications include:

• Household and industrial electrical troubleshooting

• Electronics prototyping and repair

• Automotive and HVAC system diagnostics

• Power supply and battery testing

• Field service and maintenance

In industrial settings, understanding what is a multimeter goes hand in hand with broader practices like industrial electrical maintenance, where accuracy and safety are critical.

Advantages and Limitations

Like any tool, multimeters have strengths that make them invaluable, as well as limitations that users must understand.

Advantages:

• Combines a voltmeter, an ammeter, an ohmmeter, and more into one device

• Affordable and widely available

• Fast, versatile, and portable

Limitations:

• Accuracy is lower than specialized laboratory instruments

• Burden voltage can affect sensitive circuits

• Incorrect use may damage the meter or the circuit

For preventive strategies, multimeters complement other tools covered in preventive maintenance training, ensuring equipment remains reliable and downtime is minimized.

Safety and Standards

Safe multimeter operation depends on both correct technique and the proper use of equipment. Following these precautions reduces risks and ensures accurate results. Safe multimeter use requires:

• Using the correct range and function for each measurement

• Ensuring probes and leads are rated for the environment (CAT I–IV)

• Observing overvoltage ratings and fuse protection

• Avoiding direct contact with live circuits

• Regular calibration and inspection for damaged leads or cases

Failure to follow safety precautions can lead to inaccurate readings, blown fuses, or electric shock. Standards such as NFPA 70B 2023 emphasize the importance of testing equipment like multimeters as part of a comprehensive electrical maintenance program.

History and Terminology

The word “multimeter” reflects its ability to measure multiple quantities. Early versions were known as Volt-Ohm-Meters (VOMs) or Avometers (after the original AVO brand), first popularized in the early 20th century. Digital multimeters largely replaced analog models in the late 20th century; however, analog meters remain useful for certain applications.

Frequently Asked Questions

What is the input impedance of a multimeter?

It refers to the resistance the meter presents to the circuit. Higher impedance prevents measurement errors and reduces loading on the circuit.

Why is True RMS important?

True RMS meters accurately measure non-sinusoidal signals, which are common in modern electronics, while average-responding meters can yield misleading results.

Can using a multimeter damage a circuit?

Yes, incorrect range selection, probe placement, or exceeding current ratings can damage circuits or blow fuses inside the meter.

How accurate are digital multimeters?

Typical handheld models are accurate within ±0.5% to ±2%. Bench models achieve significantly higher accuracy, making them suitable for calibration labs.

What safety rating should I look for?

For household electronics, CAT II is often sufficient. For industrial or utility work, CAT III or CAT IV-rated meters are required.

A multimeter is a versatile instrument that combines measurement functions into a single, indispensable tool for electrical diagnostics. By understanding the types, functions, technical specifications, and safety standards of multimeters, users can select the right one and use it effectively across various applications, including home, industrial, and laboratory settings.

Related Articles

• Electricity Fundamentals

• Electricity Questions

• Electricity History

Voltage is the electrical potential difference between two points, providing the force that moves current through conductors. It expresses energy per charge, powering devices, controlling circuits, and ensuring efficient and safe operation of electrical and electronic systems.

What is Voltage?

Voltage is the electric potential difference, the work done per unit charge (Joules per Coulomb). It:

✅ Is the difference in electric potential energy between two points in a circuit.

✅ Represents the force that pushes electric current through conductors.

✅ It is measured in volts (V), and it is essential for power distribution and electrical safety.

To comprehend the concept of what is voltage, it is essential to understand its fundamental principles. Analogies make this invisible force easier to picture. One of the most common is the water pressure analogy: just as higher water pressure pushes water through pipes more forcefully, higher voltage pushes electric charges through a circuit. A strong grasp of voltage begins with the fundamentals of electricity fundamentals, which explain how current, resistance, and power interact in circuits.

Another way to imagine what is voltage is as a hill of potential energy. A ball placed at the top of a hill naturally rolls downward under gravity. The steeper the hill, the more energy is available to move the ball. Likewise, a higher voltage means more energy is available per charge to move electrons in a circuit.

A third analogy is the pump in a water system. A pump creates pressure, forcing water to move through pipes. Similarly, a battery or generator functions as an electrical pump, supplying the energy that drives electrons through conductors. Without this push, charges would remain in place and no current would flow.

Together, these analogies—water pressure, potential energy hill, and pump—show how voltage acts as the essential driving force, the “electrical pressure” that enables circuits to function and devices to operate. Since voltage and Current are inseparable, Ohm’s Law shows how resistance influences the flow of electricity in every system.

These analogies help us visualize voltage as pressure or stored energy, but in physics, voltage has a precise definition. It is the work done per unit charge to move an electric charge from one point to another. Mathematically, this is expressed as:

V = W / q

where V is voltage (in volts), W is the work or energy (in joules), and q is the charge (in coulombs). This equation shows that one volt equals one joule of energy per coulomb of charge.

In circuit analysis, voltage is also described through Ohm’s Law, which relates it to current and resistance:

V = I × R

where I is current (in amperes) and R is resistance (in ohms). This simple but powerful formula explains how voltage, current, and resistance interact in every electrical system.

Italian physicist Alessandro Volta played a crucial role in discovering and understanding V. The unit of voltage, the volt (V), is named in his honor. V is measured in volts, and the process of measuring V typically involves a device called a voltmeter. In an electrical circuit, the V difference between two points determines the energy required to move a charge, specifically one coulomb of charge, between those points. The history of voltage is closely tied to the History of Electricity, where discoveries by pioneers like Volta and Franklin have shaped modern science.

An electric potential difference between two points produces an electric field, represented by electric lines of flux (Fig. 1). There is always a pole that is relatively positive, with fewer electrons, and one that is relatively negative, with more electrons. The positive pole does not necessarily have a deficiency of electrons compared with neutral objects, and the negative pole might not have a surplus of electrons compared with neutral objects. But there's always a difference in charge between the two poles. So the negative pole always has more electrons than the positive pole.

Fig 1. Electric lines of flux always exist near poles of electric charge.

The abbreviation for voltage measurement is V. Sometimes, smaller units are used. For example, the millivolt (mV) is equal to a thousandth (0.001) of a volt. The microvolt (uV) is equal to a millionth (0.000001) of a volt. And it is sometimes necessary to use units much larger than one volt. For example, one kilovolt (kV) is equal to one thousand volts (1,000). One megavolt (MV) is equal to one million volts (1,000,000) or one thousand kilovolts. When comparing supply types, the distinction between Direct Current and AC vs DC shows why standardized voltage systems are essential worldwide.

The concept of what is voltage is closely related to electromotive force (EMF), which is the energy source that drives electrons to flow through a circuit. A chemical battery is a common example of a voltage source that generates EMF. The negatively charged electrons in the battery are compelled to move toward the positive terminal, creating an electric current.

In power distribution, three-phase electricity and 3 Phase Power demonstrate how higher voltages improve efficiency and reliability.

Voltage is a fundamental concept in electrical and electronic systems, as it influences the behavior of circuits and devices. One of the most important relationships involving V is Ohm's Law, which describes the connection between voltage, current, and resistance in an electrical circuit. For example, Ohm's Law states that the V across a resistor is equal to the product of the current flowing through it and the resistance of the resistor.

The voltage dropped across components in a circuit is critical when designing or analyzing electrical systems. Voltage drop occurs when the circuit components, such as resistors, capacitors, and inductors, partially consume the V source's energy. This phenomenon is a crucial aspect of circuit analysis, as it helps determine a system's power distribution and efficiency. Potential energy is defined as the work required to move a unit of charge from different points in an electric dc circuit in a static electric field.  Engineers often analyze Voltage Drop to evaluate circuit performance, alongside concepts like Electrical Resistance.

Voltage levels are standardized in both household and industrial applications to ensure the safe and efficient operation of electrical equipment. In residential settings, common voltage levels range from 110 to 240 volts, depending on the country. Industrial applications often utilize higher voltages, ranging from several kilovolts to tens of kilovolts, to transmit electrical energy over long distances with minimal losses.

Another important distinction in the realm of voltage is the difference between alternating current (AC) and direct current (DC). AC alternates periodically, whereas DC maintains a constant direction. AC is the standard for most household and industrial applications, as it can be easily transformed to different voltage levels and is more efficient for long-distance transmission. DC voltage, on the other hand, is often used in batteries and electronic devices.

Voltage is the driving force behind the flow of charge carriers in electrical circuits. It is essential for understanding the behavior of circuits and the relationship between voltage, current, and resistance, as described by Ohm's Law. The importance of V levels in household and industrial applications, as well as the significance of voltage drop in circuit analysis, cannot be overstated. Finally, the distinction between AC and DC voltage is critical for the safe and efficient operation of electrical systems in various contexts.

By incorporating these concepts into our understanding of voltage, we gain valuable insight into the world of electricity and electronics. From the pioneering work of Alessandro Volta to the modern applications of voltage in our daily lives, it is clear that voltage will continue to play a crucial role in the development and advancement of technology. Foundational principles such as Amperes Law and the Biot Savart Law complement voltage by describing how currents and magnetic fields interact.

Related Articles

• Electricity Fundamentals

• Electricity Questions

• Electricity History

Static electricity is the accumulation of electrical charge on an object’s surface, usually from friction, induction, or contact. This imbalance of electrons and protons creates sparks, shocks, and attraction, influencing physics, electronics, and everyday energy phenomena.

What is Static Electricity?

Static electricity occurs when an imbalance of electric charges exists within or on the surface of a material. It results from the movement of electrons, negatively charged particles that orbit the nucleus of an atom. At its core, static electricity is one aspect of electrical behavior—if you’d like to explore foundational concepts like charge and energy flow, see what is electricity.

✅ Caused by friction between materials, transferring electrons

✅ Can result in mild electric shocks or static cling

✅ Affects electronics, dust attraction, and insulation needs

Atoms also consist of positively charged particles called protons and neutral particles called neutrons. When an object gains or loses electrons, it becomes positively or negatively charged.

How Static Electricity Forms

Static electricity occurs when a static electric charge builds up on the surface of a material, often resulting from friction or the separation of objects. This phenomenon, commonly referred to as static, occurs when negative charges—specifically, electrons—accumulate in one area, creating an imbalance. When conditions allow, electrons jump suddenly to another surface to neutralize this difference, sometimes producing a visible spark or mild shock. Unlike materials that easily conduct, electrical insulators tend to trap these charges, making static buildup more likely.

Static electricity arises when there is an imbalance of charges, specifically, when electrons are transferred from one material to another. This can happen through two primary mechanisms: the triboelectric effect and electrostatic induction. To understand how electric charges interact in circuits, explore what is an electrical circuit and how current flow differs from static buildup.

Triboelectric Effect

When two different materials come into contact and then separate, electrons move from one surface to the other. The object that loses electrons becomes positively charged, and the one that gains them becomes negatively charged. This is the most common way static electricity is created.

• Clothes sticking after being dried

• A balloon clinging to a wall after rubbing on hair

Electrostatic Induction

Unlike the triboelectric effect, induction involves no direct contact. A charged object brought near a neutral object can cause electrons within the neutral object to shift positions, creating areas of opposite charge. This redistribution allows static electricity to form without touching. Since friction between insulating materials often generates static charge, it’s helpful to know what is a conductor and what is an insulator.

Conductors vs. Insulators

The behavior of static electricity largely depends on the type of material involved. Some materials allow charge to flow freely, while others trap it.

Insulators prevent the free movement of electrons, allowing charge to build up on their surfaces. Common insulators include rubber, plastic, and glass. Conductors, on the other hand, permit electrons to move easily, which helps dissipate static buildup. Metals like copper and aluminum are typical conductors. To understand how material properties affect charge buildup and dissipation, visit what is a conductor and what is electrical resistance.

• Insulators hold static charge and are prone to build up

• Conductors allow electrons to flow, preventing accumulation

• Static electricity often forms between two insulating surfaces

Electrostatic Discharge (ESD)

A sudden movement of static electricity from one object to another is known as electrostatic discharge, or ESD. This release can happen in a fraction of a second and may result in a visible spark or a mild electric shock.

Though often harmless in daily life, ESD can be hazardous in industrial settings. It can ignite flammable vapors or damage sensitive electronic components.

• Shocks from doorknobs or car doors

• Sparks in dry environments

• Damage to circuit boards and microchips

This process is driven by a difference in electric potential. To explore this concept further, visit what is voltage.

The behavior of electrons in materials also relates to what is capacitance, a key concept in storing electrostatic energy.

Real-World Examples

Static electricity isn’t just theoretical—it manifests in many everyday situations, often in surprising or frustrating ways.

• Static cling in laundry

• Hair standing on end in dry air

• A comb attracts small bits of paper

• Lightning storms—giant-scale electrostatic discharge

How to Prevent Static Electricity

Managing it, especially in dry environments or around sensitive equipment, is essential. Thankfully, there are several simple and effective insulator materials to reduce static buildup at home or in the workplace.

• Use humidifiers to increase air moisture

• Apply antistatic sprays to fabrics and carpets

• Wear natural fibers instead of synthetics

• Touch grounded metal before handling electronics

• Use antistatic wristbands or grounding mats when working on computers

Preventing shocks is part of general electrical safety, see dangers of electricity for more on how electrostatic discharge fits into the broader picture of electrical hazards.

Differences Between Static and Current Electricity

Although both involve electric charge, static electricity and current electricity behave very differently. Understanding the contrast helps explain why one causes shocks and the other powers devices.

To better understand flowing charge and how it contrasts with static buildup, visit what is current electricity.

Applications of Static Electricity

Electrostatic force is more than a nuisance — it has practical applications across several industries. Scientists and engineers use electrostatic principles to solve real-world problems and improve everyday technologies.

• Electrostatic precipitators filter pollutants from factory exhaust

• Laser printers and copiers use static charge to transfer toner

• Paint sprayers evenly coat surfaces using electrostatic attraction

• Electrostatic generators like the Van de Graaff produce high voltages for demonstrations and research

Demonstrating Static Electricity

You don’t need a lab to see the electrostatic force in action. Simple household materials can illustrate how this invisible force works.

• Rubbing a balloon on your hair and sticking it to a wall

• Combing dry hair and attracting paper pieces

• Using a Van de Graaff generator to make hair stand on end

The electrostatic force is the force that holds these positive and negative charges together or pushes them apart. When two objects come into contact, the triboelectric effect can transfer electrons from one object to the other. This causes both objects to become charged, with one gaining electrons and becoming negatively charged and the other losing electrons and becoming positively charged.

Insulators and conductors play a crucial role. Insulators are materials that do not allow extra electrons to flow freely, such as rubber, plastic, or glass. Conductors, on the other hand, are materials like metals that easily enable electrons to flow. When two insulators come into contact, they are more likely to generate a static charge, as electrons cannot easily move between them.

Frequently Asked Questions

What causes static electricity?

It’s caused by either the triboelectric effect (contact and separation) or electrostatic induction (non-contact charge redistribution).

What is electrostatic induction?

It’s when a nearby charged object causes the electrons in another object to shift, without any physical contact.

Why does it cause shocks?

Because the excess charge seeks to neutralize, jumping to a grounded object like your body, creating a quick discharge.

Is it dangerous?

Yes, in some cases. It can ignite flammable gases or damage delicate electronics through electrostatic discharge.

How can I prevent static buildup at home?

Keep humidity levels up, avoid synthetic materials, and use grounding methods like touching metal before contact.

What are industrial safety measures?

Professionals use ESD-safe tools such as antistatic wristbands, mats, and ionizing blowers to prevent damage and injury.

As we've explored, electrostatic charge imbalance is an intriguing and complex phenomenon influencing various aspects of our lives. From the simple yet surprising instances of hair standing on end to the practical applications in industries, understanding and harnessing this force can open up new possibilities in science, technology, and even our daily routines. By continuing to study and explore static electricity, we can unlock its full potential and utilize it to enhance our lives in numerous ways, making them better and more efficient.

It is a captivating subject that permeates our lives in various ways. By understanding the science behind it, we can better appreciate its effects, take precautions to avoid potential hazards, and explore its myriad applications in technology and industry. Moreover, as we continue to learn more about this invisible force, we can undoubtedly find new ways to harness and utilize it in our everyday lives and beyond.

Related Articles

• Electricity Fundamentals

• Electricity Questions

• Electricity History
